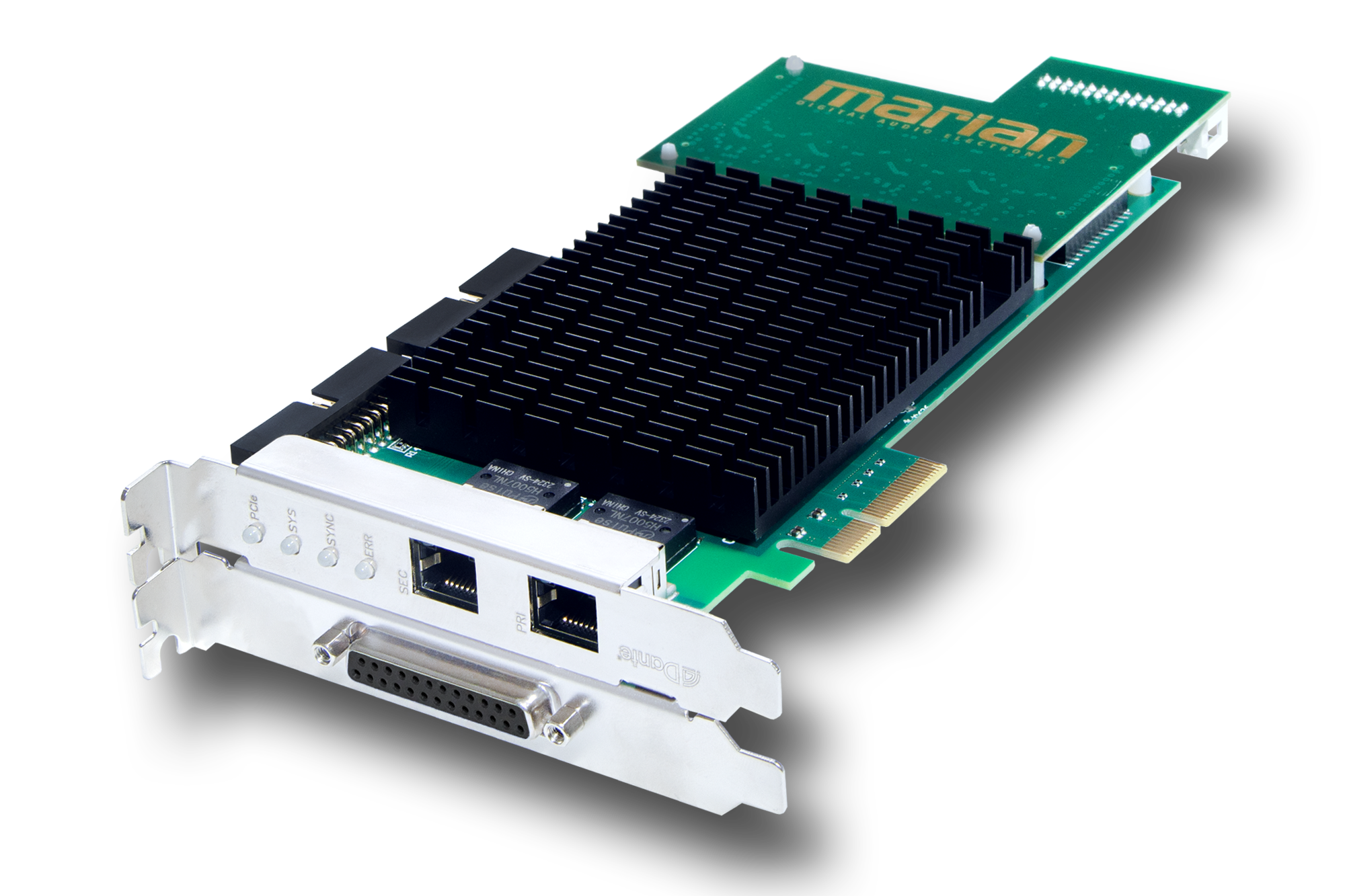

Clara E/D

Coming 11/2025:

Up to 512 bi-directional channels, long distance connectivity through low cost network cables and infrastructure, sample rates up to 192 kHz, auto-configuration – all these advantages of the Dante protocol are available with the Clara E at an amazingly affordable price. Unlike virtual solutions, the Clara E offers the security of the redundancy of 2 separate network connections and, in conjunction with the reliable PCIe interface, latencies of 1 ms and below.

The AES/EBU connections allow quick signal conversion to/from the Dante network and are also available as separate recording/playback devices.They break out on a D-Sub connector without further active electronics. Consequently, it can freely be placed in the computer’s case, separately from the motherboard. Or it may take any place next to other PCIe components with the slot bracket.

Realtime Routing, Mixing and EQ

Each input signal of the sound system can be adjusted in volume and routed latency-free to any output. The BEAST DSP mixer also sums up to 64 signals to 8 different busses and plays them back on any number of outputs without delay. Furthermore, the BEAST Mixer adds playback signals from any DAW. All mix sums can be fed back to an application for recording. In each channel of the BEAST mixer there are 4 parametric EQ available for sonic processing.

Switchable Samplerate Converter (SRC)

The SRCs, which can be switched on via software, allow any digital input signal to be fed into the sound system regardless of samplerate and clock settings. Thus, even without separate synchronization lines, any digital devices may be connected effortlessly.

Expansion options

If several Clara E are installed in one computer, they are synchronized via the TDM SyncBus and appear as a combined sound system to an ASIO application. In the Beast Mixer, up to 32 audio signals can be exchanged with other Clara sound systems (e.g. Clara A) and thus also be integrated for use with ASIO.

Sound system with a +

The “+” version includes an extension that adds a word clock input and output and 2 MIDI inputs and outputs to the sound system. This expansion card is connected to the sound card via a ribbon cable and may then be freely positioned in one of the slots of the computer housing.

Powerful and Future-Proof

This sound system is a quality product developed 100% in Germany and manufactured according to DIN EN ISO 9001. This is guaranteed by its warranty period of 5 years.
