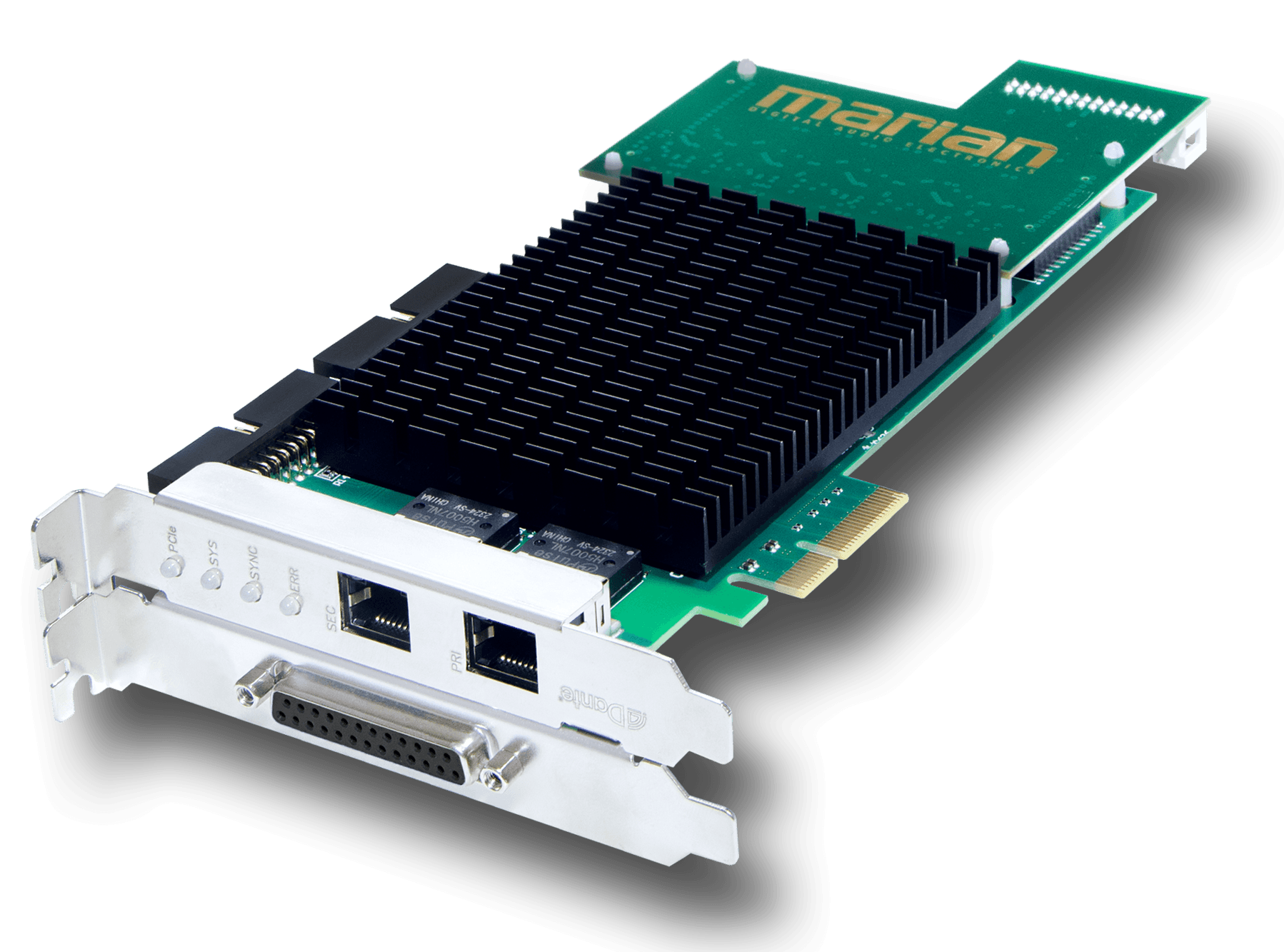

Clara E/D

Up to 512 bidirectional channels, long-distance connectivity via cost-effective network cabling and existing infrastructure, sample rates of up to 192 kHz, and automatic configuration—all the advantages of the Dante protocol are available with the Clara E at an exceptionally competitive price.

Unlike virtual solutions, the Clara E provides the security of redundant dual network connections and, in combination with the reliable PCIe interface, delivers latencies of 1 ms and below.

AES/EBU connections enable fast signal conversion to and from the Dante network and can also be used as separate recording and playback devices. They are routed to a D-Sub connector without additional active electronics, allowing flexible placement within the computer chassis, independent of the main board. Alternatively, the breakout can be positioned alongside other PCIe components using the slot bracket.

Realtime Routing, Mixing and EQ

Each input signal of the sound system can be level-adjusted individually and routed to any output with zero latency. The BEAST DSP Mixer can also sum up to 64 signals into eight independent buses and distribute them to any number of outputs without delay. In addition, playback signals from any DAW can be integrated directly into the mixer. All mix buses can be routed back into recording applications, enabling flexible monitoring and recording workflows. For tonal shaping, every channel in the BEAST Mixer features four fully parametric EQ bands. more…

Switchable Samplerate Converter (SRC)

The software-switchable sample rate converters (SRCs) allow any digital input signal to be fed into the sound system independently of its sample rate or clock configuration. This enables seamless connection of digital devices without the need for dedicated synchronization lines.

Expansion options

If several Clara E are installed in one computer, they are synchronized via the TDM SyncBus and appear as a combined sound system to an ASIO application. In the Beast Mixer, up to 32 audio signals can be exchanged with other Clara sound systems (e.g. Clara A) and thus also be integrated for use with ASIO.

Sound system with a +

The “+” version includes an expansion module that adds a word clock input/output as well as two MIDI inputs and outputs to the sound system. The expansion board connects to the audio interface via a ribbon cable and can be flexibly installed in any free slot of the computer chassis. more…

Powerful and Future-Proof

This sound system is a quality product developed 100% in Germany and manufactured according to DIN EN ISO 9001. This is guaranteed by its warranty period of 5 years.
